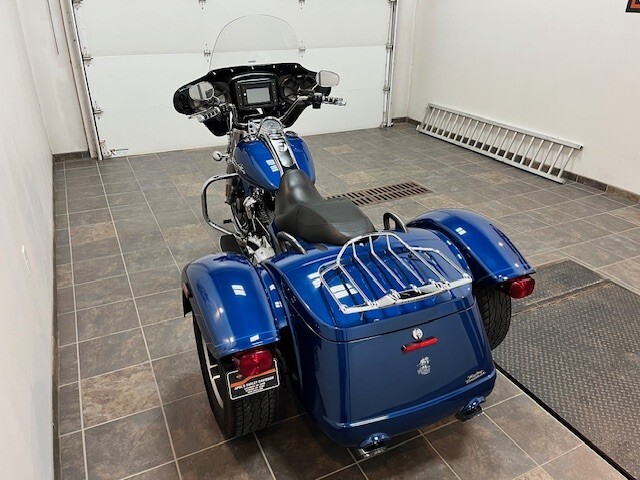

One owner local trade, was bought here new. Full service done and put on a new front tire. Added batwing fairing with CD/bluetooth/ am/fm radio along with thumb drive and aux port. Chrome luggage rack and Vance and Hines exhaust added.

Stripped-down custom style meets the confidence of three wheels. You get braking enhancements like traction control and hill hold. And plenty of power, thanks to a Milwaukee-Eight® 114 engine.

Specifications

Dimensions

add remove
- Length:

  103.0 in
- Seat height, unladen:

  27.6 in
- Ground clearance:

  4.9 in
- Rake (steering head):

  26
- Trail:

  4.0 in
- Wheelbase:

  65.7 in
- Tires, front specifications:

  MT 130/60B19 M/C 61H
- Tires, rear specifications:

  P205/65R15
- Fuel Capacity:

  6.0 gal
- Oil capacity:

  5 qt.
- Weight, as shipped:

  1,085 lbs
- Weight, in running order:

  1118 lb
- Luggage capacity – volume:

  2 cu ft (0.06 m3)
Engine

add remove
- Engine:

  Milwaukee-Eight® 114
- Bore:

  4.0 in
- Stroke:

  4.5 in
- Displacement:

  113.99 in³
- Compression ratio:

  10.5:1
- Fuel system:

  Electronic Sequential Port Fuel Injection (ESPFI)
- Exhaust:

  Shorty slash down-style chrome finish mufflers
Performance

add remove
- Engine torque testing method:

  EC 134/2014
- Engine torque:

  121.7 ft-lb
- Engine torque (RPM):

  2250
- Lean angle, right (deg.):

  N/A
- Lean angle, left (deg.):

  N/A
- Fuel economy testing method:

  EU 134/2014
- Fuel economy:

  43 mpg
- CO₂ emissions testing method:

  EU 134/2014
- CO₂ emissions :

  151 g/km CO2
Powertrain

add remove
- Primary drive:

  Chain, 34/46 ratio
- Gear ratios (overall) 1st:

  10.534
- Gear ratios (overall) 2nd:

  7.302
- Gear ratios (overall) 3rd:

  5.423
- Gear ratios (overall) 4th:

  4.392
- Gear ratios (overall) 5th:

  3.741
- Gear Ratios (overall) 6th:

  3.157
Chassis

add remove
- Wheels, front type:

  Enforcer Cast Aluminum
- Wheels, rear type:

  Enforcer Cast Aluminum
- Brakes, caliper type:

  Front: 32mm 4 piston fixed, Rear: floating 36mm piston integrated park brake
Electric

add remove
- Lights (as per country regulation), indicator:

  High beam, running lights, battery, neutral, low oil pressure, engine diagnostics, cruise control, security system, gear indicator, low fuel warning, reverse, park brake
- Gauges:

  Speedometer, fuel gauges; display features odometer, trip A, trip B, range to empty, and gear indicator
