‹ Home › Inventory › FXLRS 2020 Low Rider® S

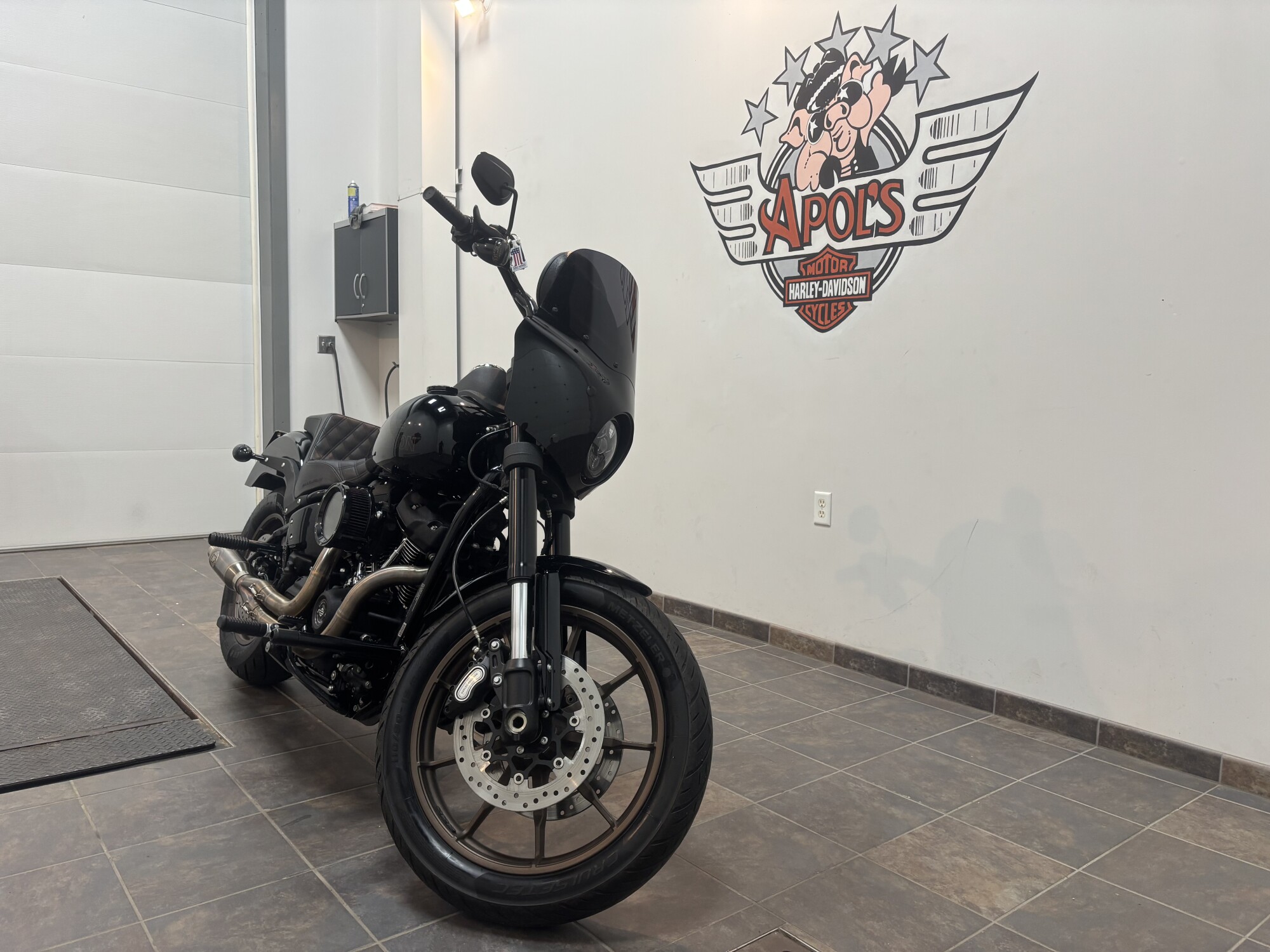

FULLY SET-UP LOW RIDER! T-BARS, STAGE 2 WITH HPI TWO INTO ONE EXHAUST, PLEX AUDIO, ROAD WARRIOR FAIRING, CRASH BARS, TRASK AIR INTAKE, PROGRESSIVE SUSPENSION, SADDLEMEN STEP UP SEAT, THRASHIN GRIPS, ALL LED LIGHTING! COME GRAB THIS BEAST BEFORE IT'S GONE!

The Low Rider® style has been giving people a new perspective for decades. And this year, we’re taking that thrilling perspective even further with the new Low Rider® S.

You get the massive torque of a Milwaukee-Eight® 114 engine, the crisp handling of the Softail® frame and a responsive premium suspension. The blacked-out finishes, the moto-style bars with four-inch risers and a mini speed screen will make you look just the way you feel while riding this laid-back machine that’s sure to create a scene whenever it’s stopped. But don’t expect onlookers to linger long. All it takes is one twist of the throttle to send them to your rearview mirror.

Specifications

Dimensions

add remove
- Length:

  92.7 in
- Ground clearance:

  4.7 in
- Rake (steering head):

  28
- Trail:

  5.7 in
- Wheelbase:

  1,615.0 in
- Tires, front specifications:

  110/90B19,62H,BW
- Tires, rear specifications:

  180/70B16,77H,BW
- Fuel Capacity:

  5.0 gal
- Oil capacity:

  5 qt.
- Weight, as shipped:

  650 lbs
- Weight, in running order:

  679 lb
Engine

add remove
- Engine:

  Milwaukee-Eight® 114
- Bore:

  4.0 in
- Stroke:

  4.5 in
- Displacement:

  113.99 in³
- Compression ratio:

  10.5:1
- Fuel system:

  Electronic Sequential Port Fuel Injection (ESPFI)
- Exhaust:

  2-into-2 offset shotgun; catalyst in muffler
Performance

add remove
- Engine torque testing method:

  J1349
- Engine torque:

  118.7 ft-lb
- Lean angle, right (deg.):

  33.1
- Lean angle, left (deg.):

  33.1
- Fuel economy testing method:

  Estimated City/Hwy
- Fuel economy:

  0.00 mpg
Powertrain

add remove
- Primary drive:

  Chain, 34/46 ratio
- Gear ratios (overall) 1st:

  9.311
- Gear ratios (overall) 2nd:

  6.454
- Gear ratios (overall) 3rd:

  4.793
- Gear ratios (overall) 4th:

  3.882
- Gear ratios (overall) 5th:

  3.307
- Gear Ratios (overall) 6th:

  2.79
Chassis

add remove
- Wheels, front type:

  Dark bronze, Radiate cast aluminum wheel
- Wheels, rear type:

  Dark bronze, Radiate cast aluminum wheel
- Brakes, caliper type:

  4-piston fixed front and 2-piston floating rear
Electric

add remove
- Lights (as per country regulation), indicator:

  High beam, turn signals, neutral, low oil pressure, engine diagnostics, auxilary lighting, cruise, ABS, security, low battery voltage, low fuel
- Gauges:

  4-inch analog speedometer with digital gear, odometer, fuel level, clock, trip, range and tachometer indication; 4-inch analog tachometer
