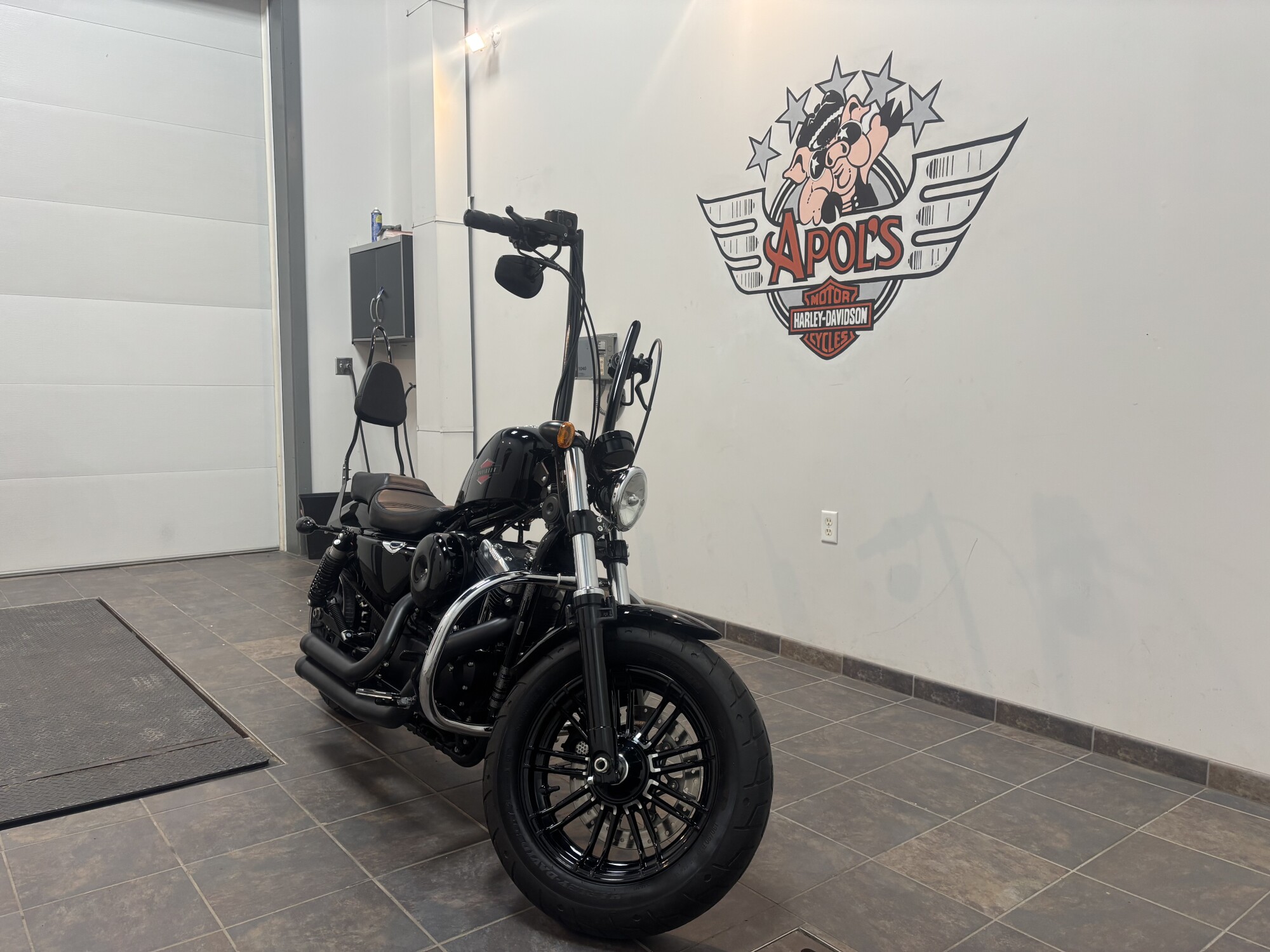

‹ Home › Inventory › XL 1200X 2022 Forty-Eight®

BAD-TO-THE-BONE! THIS THING IS MEAN AND READY TO RIP. APE HANGERS, SISSY BAR, FLOORBOARDS, COBRA EXHAUST, AND OLD SCHOOL COOL ATTITUDE!

Heavy-hitting style with fat tires and an iconic peanut tank. Designed with its signature bulldog stance and 1200cc of corner cranking torque.

Specifications

Dimensions

add remove
- Length:

  85.2 in
- Seat height, unladen:

  28.0 in
- Dry Weight:

  545 lbs
- Ground clearance:

  4.3 in
- Rake (steering head):

  30.2
- Trail:

  5.3 in
- Wheelbase:

  58.9 in
- Tires, front specifications:

  130/90B16 73H
- Tires, rear specifications:

  150/80B16 77H
- Fuel Capacity:

  2.1 gal
- Oil capacity:

  2.8 qt.
- Weight, as shipped:

  545 lbs
- Weight, in running order:

  556 lb
- Luggage capacity – volume:

  N/A
Engine

add remove
- Engine:

  Air-cooled, Evolution®
- Bore:

  3.5 in
- Stroke:

  3.8 in
- Displacement:

  73.35 in³
- Compression ratio:

  10:01
- Fuel system:

  Electronic Sequential Port Fuel Injection (ESPFI)
- Exhaust:

  Black, staggered, shorty exhaust with dual mufflers
Performance

add remove
- Engine torque testing method:

  EC 134/2014
- Engine torque:

  73.0 ft-lb
- Engine torque (RPM):

  3500
- Horsepower:

  66 HP / x49 Kw @ 6000 rpm
- Lean angle, right (deg.):

  27
- Lean angle, left (deg.):

  27
- Fuel economy testing method:

  EU 134/2014
- Fuel economy:

  48 mpg (4.9 l/100km)
- CO₂ emissions testing method:

  EU 134/2014
- CO₂ emissions :

  120 g/km CO2
Powertrain

add remove
- Primary drive:

  Chain, 38/57 ratio
- Gear ratios (overall) 1st:

  9.315
- Gear ratios (overall) 2nd:

  6.653
- Gear ratios (overall) 3rd:

  4.948
- Gear ratios (overall) 4th:

  4.102
- Gear ratios (overall) 5th:

  3.517
- Gear Ratios (overall) 6th:

  N/A
Chassis

add remove
- Wheels, optional style type:

  N/A
- Wheels, front type:

  Black, Split 9-Spoke Cast Aluminum w/ Machined Highlights
- Wheels, rear type:

  Black, Split 9-Spoke Cast Aluminum w/ Machined Highlights
- Brakes, caliper type:

  Dual-piston front, Dual-piston rear
Electric

add remove
- Lights (as per country regulation), indicator:

  High beam, neutral, low oil pressure, turn signals, engine diagnostics, low fuel warning, low battery, security system (if equipped), ABS (if equipped)
- Gauges:

  Handlebar-mounted electronic speedometer with odometer, time-of-day clock, dual tripmeter, low fuel warning light, low oil pressure light, engine diagnostics readout, LED indicator lights
